Idec
HW2B-A2F20-G
Switch Push Button N.O. DPST Extended Square Button 10A 440VAC 220VDC 745.7VA Maintained Contact Screw Panel Mount
MountingPanel
Quick Jump:
Technical Specifications
Idec HW2B-A2F20-G technical specifications.
General
Actuator Color
Green
Actuator Length
6mm
Contact Material
Silver
Electrical Life
10000000Cycles
Max Operating Temperature
50°C
Min Operating Temperature
-25°C
Max Voltage Rating (AC)
440V
Max Voltage Rating (DC)
220V
Mechanical Life
500000Cycles
Mount
Panel
Orientation
Straight
Termination
Contact Block
Throw Configuration
DPST
Compliance
RoHS
Not Compliant
Datasheet
Idec HW2B-A2F20-G Datasheet
Download the complete datasheet for Idec HW2B-A2F20-G to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

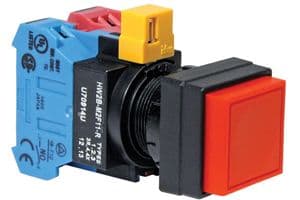

Product Images
