Technical Specifications
Idec LA1S-3C6 technical specifications.
General
Approvals
CSA, CE, TUV
Contact Material
Silver
Electrical Life
100000Cycles
Index Angle
45°
Max Operating Temperature
55°C
Min Operating Temperature
-25°C
Max Voltage Rating (AC)
250V
Max Voltage Rating (DC)
125V
Mechanical Life
250000Cycles
Mount
Panel
Number of Decks
1
Number of Poles
2
Number of Positions
3
Orientation
Straight
Ratings
IP65
Termination
Solder
Throw Configuration
DPDT
Voltage Rating (AC)
250V
Compliance
RoHS
Compliant
Datasheet
Idec LA1S-3C6 Datasheet
Download the complete datasheet for Idec LA1S-3C6 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

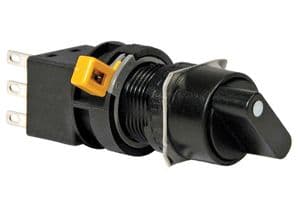

Product Images
