Idec
LA2S-32C6

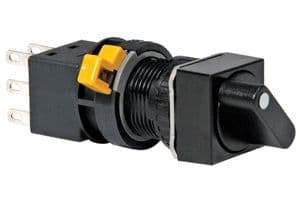

Switch Selector N.O./N.C. DPDT 45° Knob 5A 250VAC 125VDC Solder Tab 250000Cycles Panel Mount
MountingPanel
Quick Jump:
Technical Specifications
Idec LA2S-32C6 technical specifications.
General
Contact Material
Silver
Electrical Life
100000Cycles
Max Operating Temperature
55°C
Min Operating Temperature
-25°C
Max Voltage Rating (AC)
250V
Max Voltage Rating (DC)
125V
Mechanical Life
250000Cycles
Mount
Panel
Number of Positions
3
Orientation
Straight
Ratings
IP65
Termination
Solder
Throw Configuration
DPDT
Compliance
RoHS
Unconfirmed
Datasheet
Idec LA2S-32C6 Datasheet
Download the complete datasheet for Idec LA2S-32C6 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
