5-position relay socket with screw termination, rated for 250V and 10A maximum current. Features a straight, female orientation and a compact design with dimensions of 1.22 inches length, 0.707 inches width, and 1.063 inches height. This RoHS compliant socket offers versatile mounting options, supporting both DIN rail and panel installation.
Voltage Rating250V
Current Rating10A
MountingDIN Rail, Panel
Quick Jump:
Technical Specifications
Idec SH1B-05 technical specifications.
General
Current Rating
10A
Gender
Female
Height
1.063inch
Length
1.22inch
Max Current Rating
7A
Mount
DIN Rail, Panel
Number of Contacts
1
Number of Positions
5
Orientation
Straight
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
SH
Termination
Screw
Voltage Rating
250V
DC Rated Voltage
250V
Width
0.707inch
Compliance
RoHS
Compliant
Datasheet
Idec SH1B-05 Datasheet
Download the complete datasheet for Idec SH1B-05 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

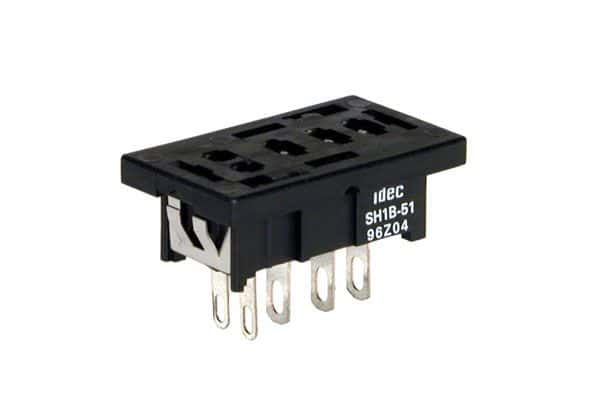

Product Images
