IFM Electronic
NG5002
Inductive sensor 5 mm NAMUR break contact PVC Cable 2 m 8.2 VDC -25. . .+80 °C, NG5002, Ifm
MountingFlush
Quick Jump:
Technical Specifications
IFM Electronic NG5002 technical specifications.
General
| Length | 33mm |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -25°C |
| Mount | Flush |
| Operating Supply Voltage | 30V |
| Ratings | IP67 |
| Switching Current | 30mA |
Compliance
| RoHS | Compliant |
Datasheet
IFM Electronic NG5002 Datasheet
Download the complete datasheet for IFM Electronic NG5002 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

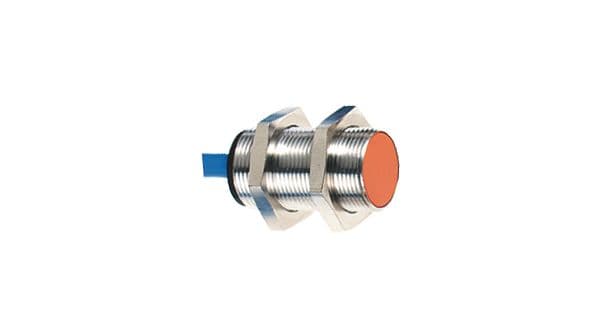

Product Images
