Technical Specifications
Infineon BAS3005B-02VH6327 technical specifications.
General
Average Rectified Current
500mA
Package/Case
SC
Forward Current
500mA
Height
0.55mm
Length
1.2mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Repetitive Reverse Voltage (Vrrm)
30V
Max Reverse Current
25uA
Max Reverse Voltage (DC)
30V
Mount
Surface Mount
Package Quantity
1
Packaging
Cut Tape
Peak Non-Repetitive Surge Current
5A
Radiation Hardening
No
Width
0.8mm
Compliance
RoHS
Compliant
Datasheet
Infineon BAS3005B-02VH6327 Datasheet
Download the complete datasheet for Infineon BAS3005B-02VH6327 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

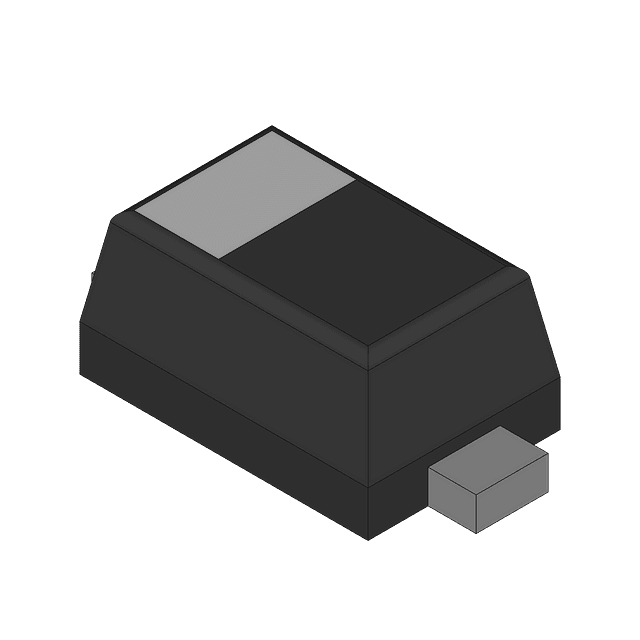

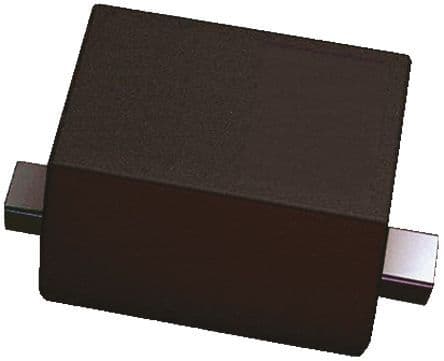

Product Images
