Technical Specifications
Infineon BC817K-40E6433 technical specifications.
General
Package/Case
TO-236-3
Collector Base Voltage (VCBO)
50V
Collector Emitter Breakdown Voltage
45V
Collector-emitter Voltage-Max
700mV
Max Breakdown Voltage
45V
Max Collector Current
500mA
Max Operating Temperature
150°C
Min Operating Temperature
-65°C
Max Power Dissipation
500mW
Mount
Surface Mount
Package Quantity
1
Packaging
Tape and Reel
Transition Frequency
170MHz
Compliance
RoHS
Compliant
Datasheet
Infineon BC817K-40E6433 Datasheet
Download the complete datasheet for Infineon BC817K-40E6433 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

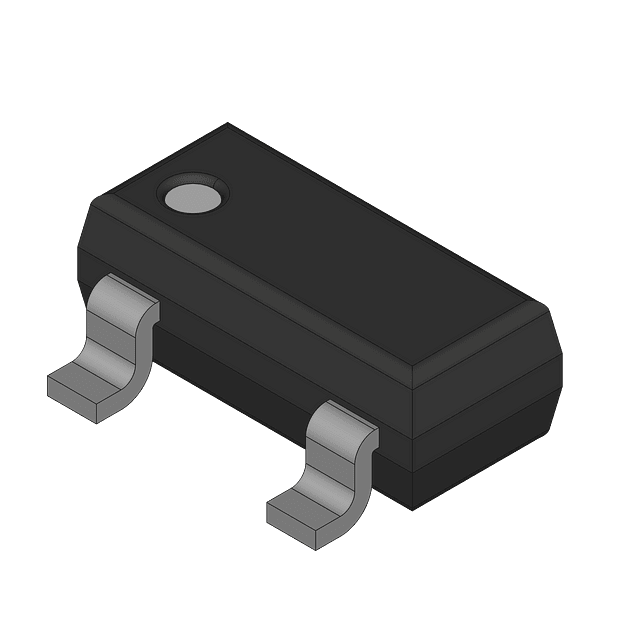

Product Images
