Frequency250MHz
PackageTO-236-3
MountingSurface Mount
PolarityNPN
Quick Jump:
Technical Specifications
Infineon BC847B-E6327 technical specifications.
General
Package/Case
TO-236-3
Collector Base Voltage (VCBO)
50V
Collector Emitter Breakdown Voltage
45V
Collector Emitter Voltage (VCEO)
45V
Collector-emitter Voltage-Max
600mV
Emitter Base Voltage (VEBO)
6V
Frequency
250MHz
Max Breakdown Voltage
45V
Max Collector Current
100mA
Max Operating Temperature
150°C
Min Operating Temperature
-65°C
Max Power Dissipation
330mW
Mount
Surface Mount
Number of Elements
1
Package Quantity
1
Packaging
Tape and Reel
Polarity
NPN
Power Dissipation
330mW
Radiation Hardening
No
Transition Frequency
250MHz
Compliance
RoHS
Compliant
Datasheet
Infineon BC847B-E6327 Datasheet
Download the complete datasheet for Infineon BC847B-E6327 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

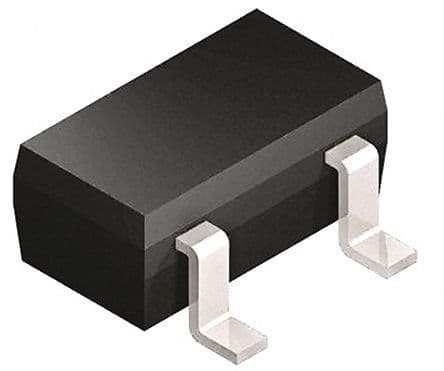

Product Images
