Technical Specifications
Infineon BC847C-B5000 technical specifications.
General
| Package/Case | SOT-23-3 |
| Collector Base Voltage (VCBO) | 50V |
| Collector-emitter Voltage-Max | 45V |
| Emitter Base Voltage (VEBO) | 6V |
| Gain Bandwidth Product | 250MHz |
| Max Collector Current | 100mA |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -65°C |
| Max Power Dissipation | 330mW |
| Package Quantity | 90000 |
| Packaging | Tape and Reel |
| Polarity | NPN |
Compliance
| RoHS | Compliant |
Datasheet
Infineon BC847C-B5000 Datasheet
Download the complete datasheet for Infineon BC847C-B5000 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

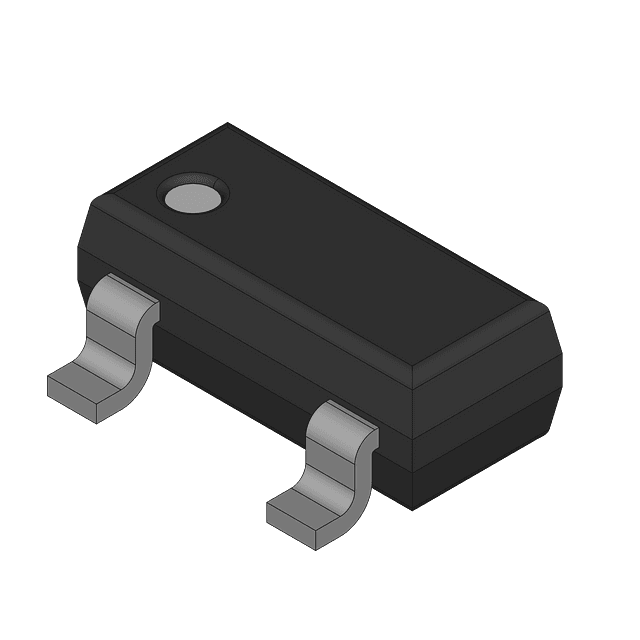

Product Images
