Technical Specifications
Infineon BCR166E6433 technical specifications.
General
Package/Case
TO-236-3
Collector Emitter Breakdown Voltage
50V
Collector-emitter Voltage-Max
300mV
Max Collector Current
100mA
Max Operating Temperature
150°C
Min Operating Temperature
-65°C
Max Power Dissipation
200mW
Mount
Surface Mount
Package Quantity
10000
Packaging
Tape and Reel
Radiation Hardening
No
RoHS Compliant
Yes
Transition Frequency
160MHz
Compliance
RoHS
Compliant
Datasheet
Infineon BCR166E6433 Datasheet
Download the complete datasheet for Infineon BCR166E6433 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

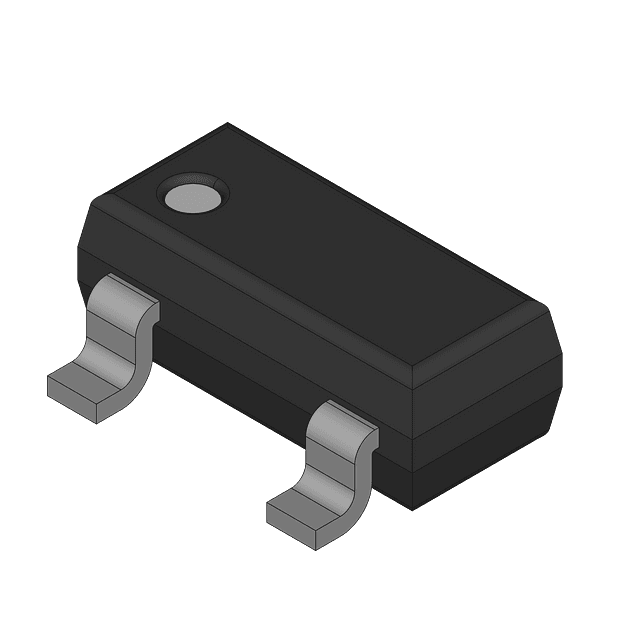

Product Images
