The BCX71J-E6327 is a surface mount bipolar transistor with a collector-emitter breakdown voltage of 45V and a maximum collector current of 100mA. It has a maximum power dissipation of 330mW and a transition frequency of 250MHz. The device is packaged in a SOT-323-3 package and is lead free. It is RoHS compliant and suitable for use in a variety of electronic applications. The operating temperature range is not specified in the provided data.
PackageSOT-323-3
Current Rating-100mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Infineon BCX71J-E6327 technical specifications.
General
| Package/Case | SOT-323-3 |
| Collector Emitter Breakdown Voltage | 45V |
| Collector-emitter Voltage-Max | 550mV |
| Current Rating | -100mA |
| Lead Free | Lead Free |
| Max Breakdown Voltage | 45V |
| Max Collector Current | 100mA |
| Max Power Dissipation | 330mW |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Transition Frequency | 250MHz |
| DC Rated Voltage | -45V |
Compliance
| RoHS | Compliant |
Datasheet
Infineon BCX71J-E6327 Datasheet
Download the complete datasheet for Infineon BCX71J-E6327 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

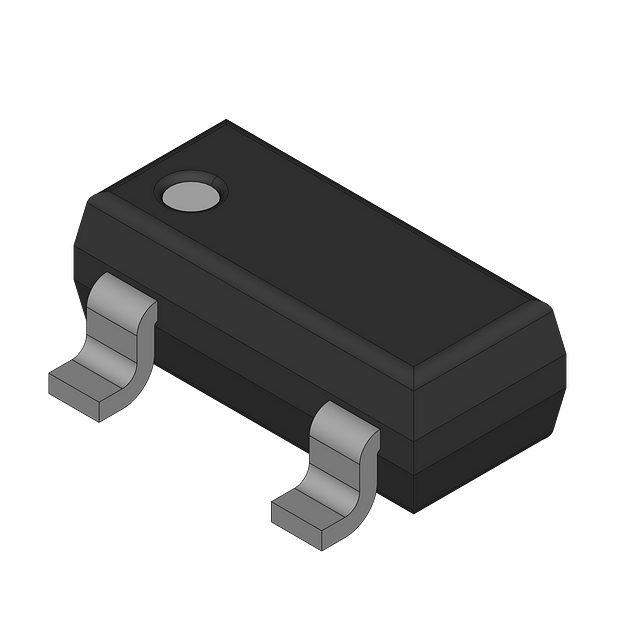

Product Images
