Technical Specifications
Infineon BSP742-T technical specifications.
General
| Package/Case | SOIC |
| Drain to Source Voltage (Vdss) | 40V |
| Halogen Free | Halogen Free |
| Height | 1.45mm |
| Lead Free | Lead Free |
| Length | 5mm |
| Load Current | 800mA |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 4A |
| Max Power Dissipation | 1.5W |
| Max Supply Voltage | 34V |
| Min Supply Voltage | 5V |
| Number of Channels | 1 |
| Number of Outputs | 1 |
| On-State Resistance | 260mR |
| Output Current per Channel | 1.1A |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Series | miniPROFET® |
| Supply Current | 1mA |
| Width | 4mm |
Compliance
| RoHS | Compliant |
Datasheet
Infineon BSP742-T Datasheet
Download the complete datasheet for Infineon BSP742-T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

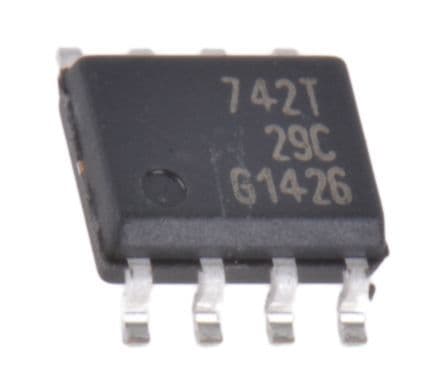

Product Images
