Technical Specifications
Infineon IPD530N15N3G technical specifications.
General
| Package/Case | TO-252-3 |
| Continuous Drain Current (ID) | 21A |
| Drain to Source Breakdown Voltage | 150V |
| Drain to Source Resistance | 53mR |
| Fall Time | 3ns |
| Gate to Source Voltage (Vgs) | 20V |
| Height | 2.41mm |
| Input Capacitance | 887pF |
| Lead Free | Lead Free |
| Length | 6.73mm |
| Max Operating Temperature | 175°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 68W |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Polarity | N-CHANNEL |
| Power Dissipation | 68W |
| Rds On Max | 53mR |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | OptiMOS™ |
| Threshold Voltage | 3V |
| Turn-Off Delay Time | 13ns |
| Turn-On Delay Time | 9ns |
| Width | 6.22mm |
Compliance
| RoHS | Compliant |
Datasheet
Infineon IPD530N15N3G Datasheet
Download the complete datasheet for Infineon IPD530N15N3G to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

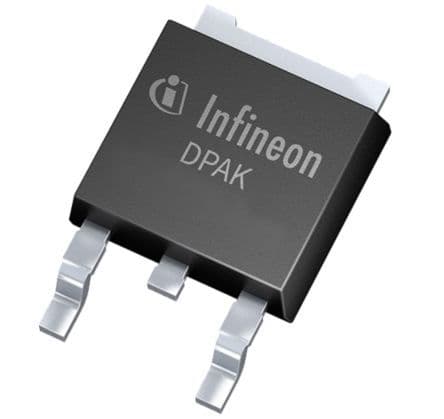

Product Images
