Technical Specifications
Infineon SPB80P06P-G technical specifications.
General
| Package/Case | TO-263-3 |
| Continuous Drain Current (ID) | 80A |
| Current Rating | -80A |
| Drain to Source Voltage (Vdss) | 60V |
| Fall Time | 30ns |
| Gate to Source Voltage (Vgs) | 20V |
| Halogen Free | Halogen Free |
| Height | 4.57mm |
| Input Capacitance | 5.033nF |
| Lead Free | Lead Free |
| Length | 10.31mm |
| Max Operating Temperature | 175°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 340W |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Rds On Max | 23mR |
| RoHS Compliant | Yes |
| Series | SIPMOS® |
| Turn-Off Delay Time | 56ns |
| Turn-On Delay Time | 24ns |
| DC Rated Voltage | -60V |
| Width | 9.45mm |
Compliance
| RoHS | Compliant |
Datasheet
Infineon SPB80P06P-G Datasheet
Download the complete datasheet for Infineon SPB80P06P-G to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

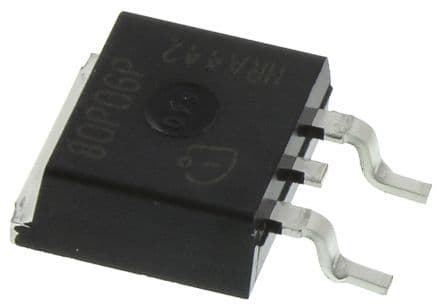

Product Images
