PackageSOIC
MountingSurface Mount
Power625mW
Quick Jump:
Technical Specifications
International Rectifier IR2111S technical specifications.
General
| Package/Case | SOIC |
| Fall Time | 65ns |
| Lead Free | Contains Lead |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 500mA |
| Max Supply Voltage | 20V |
| Min Supply Voltage | 10V |
| Mount | Surface Mount |
| Number of Drivers | 2 |
| Number of Outputs | 2 |
| Operating Supply Voltage | 15V |
| Output Current | 200mA |
| Output Voltage | 20V |
| Package Quantity | 95 |
| Packaging | Rail/Tube |
| Power Dissipation | 625mW |
| Propagation Delay | 950ns |
| RoHS Compliant | No |
| Turn-Off Delay Time | 30ns |
| Turn-On Delay Time | 30ns |
Compliance
| RoHS | Not Compliant |
Datasheet
International Rectifier IR2111S Datasheet
Download the complete datasheet for International Rectifier IR2111S to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

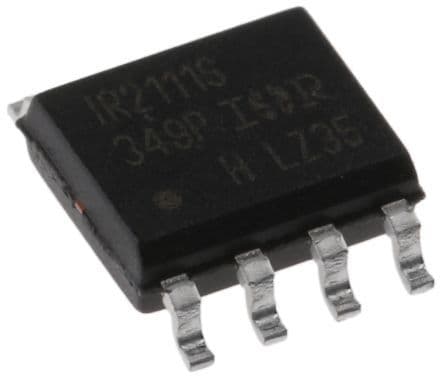

Product Images
