Six-channel high/low-side gate driver IC for MOSFETs, featuring a 20V maximum output voltage and 350mA maximum output current. This surface mount component offers a 75ns fall time and operates within a -40°C to 125°C temperature range. With a 1.6W power dissipation and 20V maximum supply voltage, it is RoHS compliant and designed for efficient power management.
PackageSOIC
Current120uA
MountingSurface Mount
Power1.6W
Quick Jump:
Technical Specifications
International Rectifier IR21368SPBF technical specifications.
General
Package/Case
SOIC
Fall Time
75ns
Lead Free
Lead Free
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
350mA
Max Output Voltage
20V
Min Output Voltage
10V
Max Power Dissipation
1.6W
Max Supply Voltage
20V
Min Supply Voltage
10V
Mount
Surface Mount
Number of Drivers
6
Number of Outputs
6
Output Current
200mA
Output Voltage
300mV
Package Quantity
1000
Packaging
Rail/Tube
Power Dissipation
1.6W
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
120uA
Termination
SMD/SMT
Turn-Off Delay Time
400ns
Turn-On Delay Time
425ns
Compliance
RoHS
Compliant
Datasheet
International Rectifier IR21368SPBF Datasheet
Download the complete datasheet for International Rectifier IR21368SPBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

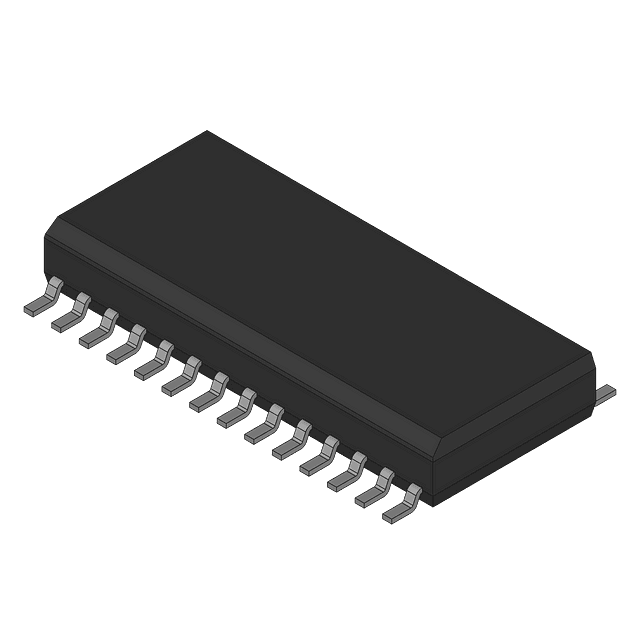

Product Images
