International Rectifier
IRF1404L
Power Field-Effect Transistor, 75A I(D), 40V, 0.004ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-262AA, PLASTIC, TO-262, 3 PIN
PackageTO-262-3
Current Rating162A
MountingThrough Hole
Quick Jump:
Technical Specifications
International Rectifier IRF1404L technical specifications.
General
Package/Case
TO-262-3
Continuous Drain Current (ID)
162A
Current Rating
162A
Drain to Source Voltage (Vdss)
40V
Input Capacitance
7.36nF
Lead Free
Contains Lead
Max Power Dissipation
3.8W
Mount
Through Hole
Package Quantity
50
Packaging
Rail/Tube
Rds On Max
4mR
RoHS Compliant
No
DC Rated Voltage
40V
Compliance
RoHS
Not Compliant
Datasheet
International Rectifier IRF1404L Datasheet
Download the complete datasheet for International Rectifier IRF1404L to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

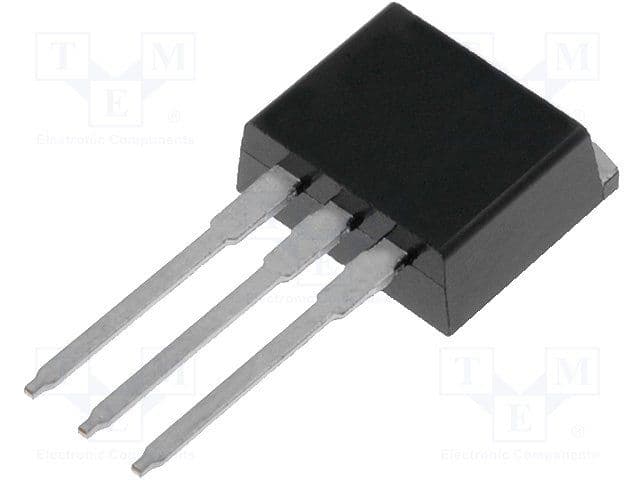

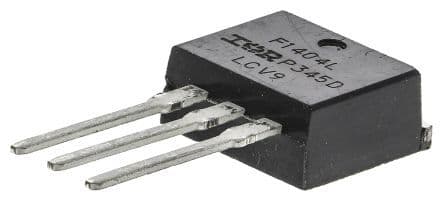

Product Images
