International Rectifier
IRF1405ZSPBF
Power Field-Effect Transistor, 75A I(D), 55V, 0.0049ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-263AB, LEAD FREE, PLASTIC, D2PAK-3
PackageD2PAK
MountingSurface Mount
Power230W
Quick Jump:
Technical Specifications
International Rectifier IRF1405ZSPBF technical specifications.
General
Package/Case
D2PAK
Continuous Drain Current (ID)
150A
Drain to Source Voltage (Vdss)
55V
Drain-source On Resistance-Max
4.9MR
Fall Time
82ns
Gate to Source Voltage (Vgs)
20V
Height
4.83mm
Input Capacitance
4.78nF
Length
10.67mm
Max Operating Temperature
175°C
Min Operating Temperature
-55°C
Max Power Dissipation
230W
Mount
Surface Mount
Nominal Vgs
4V
Number of Elements
1
Packaging
Rail/Tube
Power Dissipation
230W
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Turn-Off Delay Time
48ns
Turn-On Delay Time
18ns
Width
9.65mm
Compliance
RoHS
Compliant
Datasheet
International Rectifier IRF1405ZSPBF Datasheet
Download the complete datasheet for International Rectifier IRF1405ZSPBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

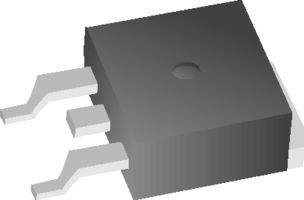

Product Images
