International Rectifier
IRF520NPBF
Power Field-Effect Transistor, 9.7A I(D), 100V, 0.2ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-220AB, LEAD FREE PACKAGE-3
PackageTO-220AB
Current Rating9.7A
MountingThrough Hole
Quick Jump:
Technical Specifications
International Rectifier IRF520NPBF technical specifications.
General
Package/Case
TO-220AB
Continuous Drain Current (ID)
9.7A
Current Rating
9.7A
Drain to Source Voltage (Vdss)
100V
Drain-source On Resistance-Max
200mR
Dual Supply Voltage
100V
Gate to Source Voltage (Vgs)
20V
Height
8.77mm
Input Capacitance
330pF
Lead Free
Lead Free
Lead Pitch
2.54mm
Length
10.54mm
Max Operating Temperature
175°C
Min Operating Temperature
-55°C
Max Power Dissipation
48W
Mount
Through Hole
Nominal Vgs
4V
Reach SVHC Compliant
No
RoHS Compliant
Yes
Turn-Off Delay Time
32ns
Turn-On Delay Time
4.5ns
DC Rated Voltage
100V
Width
4.69mm
Compliance
RoHS
Compliant
Datasheet
International Rectifier IRF520NPBF Datasheet
Download the complete datasheet for International Rectifier IRF520NPBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

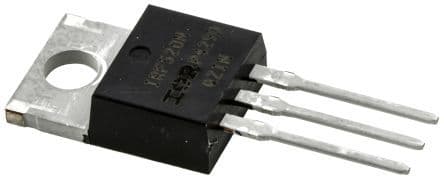

Product Images
