International Rectifier
IRF6218STRLPBF
Power Field-Effect Transistor, 27A I(D), 150V, 0.15ohm, 1-Element, P-Channel, Silicon, Metal-oxide Semiconductor FET, TO-263AB, LEAD FREE, PLASTIC, D2PAK-3
PackageD2PAK
MountingSurface Mount
Quick Jump:
Technical Specifications
International Rectifier IRF6218STRLPBF technical specifications.
General
Package/Case
D2PAK
Continuous Drain Current (ID)
27A
Drain to Source Voltage (Vdss)
150V
Drain-source On Resistance-Max
150MR
Gate to Source Voltage (Vgs)
20V
Height
4.83mm
Input Capacitance
2.21nF
Lead Free
Lead Free
Length
10.67mm
Max Operating Temperature
175°C
Min Operating Temperature
-55°C
Max Power Dissipation
250W
Mount
Surface Mount
Nominal Vgs
-5V
Package Quantity
1
Packaging
Cut Tape
Rds On Max
150mR
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
HEXFET®
Turn-Off Delay Time
35ns
Turn-On Delay Time
21ns
Width
9.65mm
Compliance
RoHS
Compliant
Datasheet
International Rectifier IRF6218STRLPBF Datasheet
Download the complete datasheet for International Rectifier IRF6218STRLPBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

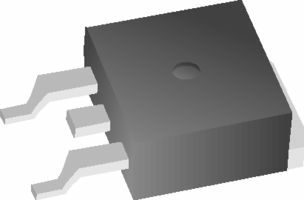

Product Images
