INTERNATIONAL RECTIFIER

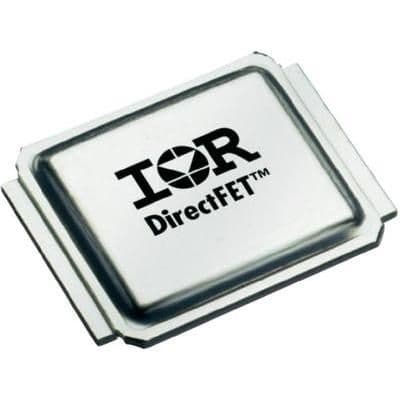

IRF6648TR1PBF

Datasheet

N-Channel MOSFET, 60V, 86A, 7mR Rds On, Surface Mount

International Rectifier

IRF6648TR1PBF

Name: IRF6648TR1PBF International Rectifier
Brand: International Rectifier
SKU: IRF6648TR1PBF

N-Channel MOSFET, 60V, 86A, 7mR Rds On, Surface Mount

N-Channel Power MOSFET, 60V Drain-Source Breakdown Voltage, 86A Continuous Drain Current, and 7mΩ Max Drain-Source On-Resistance. Features 13ns Fall Time, 28ns Turn-Off Delay, and 16ns Turn-On Delay. Operates with a 20V Gate-to-Source Voltage and offers 2.12nF Input Capacitance. This surface-mount device, with a 2.8W Max Power Dissipation, is RoHS compliant and packaged on tape and reel.

Current Rating86A

MountingSurface Mount

PolarityN-CHANNEL

Power2.8W

Quick Jump:

Technical Specifications

International Rectifier IRF6648TR1PBF technical specifications.

General

Continuous Drain Current (ID)	86A
Current Rating	86A
Drain to Source Breakdown Voltage	60V
Drain to Source Resistance	7mR
Drain to Source Voltage (Vdss)	60V
Drain-source On Resistance-Max	7MR
Fall Time	13ns
Gate to Source Voltage (Vgs)	20V
Height	0.6mm
Input Capacitance	2.12nF
Lead Free	Lead Free
Length	5.45mm
Max Operating Temperature	150°C
Min Operating Temperature	-40°C
Max Power Dissipation	2.8W
Mount	Surface Mount
Number of Elements	1
Package Quantity	1
Packaging	Tape and Reel
Polarity	N-CHANNEL
Power Dissipation	2.8W
Radiation Hardening	No
Rds On Max	7mR
RoHS Compliant	Yes
Series	HEXFET®
Turn-Off Delay Time	28ns
Turn-On Delay Time	16ns
DC Rated Voltage	60V
Width	5.05mm
