International Rectifier
IRFB7537PBF
Power Field-Effect Transistor, 173A I(D), 60V, 0.0033ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-220AB, ROHS COMPLIANT, PLASTIC PACKAGE-3
PackageTO-220AB
MountingThrough Hole
Quick Jump:
Technical Specifications
International Rectifier IRFB7537PBF technical specifications.
General
| Package/Case | TO-220AB |
| Continuous Drain Current (ID) | 173A |
| Drain to Source Voltage (Vdss) | 60V |
| Gate to Source Voltage (Vgs) | 20V |
| Height | 16.51mm |
| Input Capacitance | 7.02nF |
| Lead Free | Lead Free |
| Length | 10.67mm |
| Max Operating Temperature | 175°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 230W |
| Mount | Through Hole |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Threshold Voltage | 3.7V |
| Turn-Off Delay Time | 82ns |
| Turn-On Delay Time | 15ns |
| Width | 4.83mm |
Compliance
| RoHS | Compliant |
Datasheet
International Rectifier IRFB7537PBF Datasheet
Download the complete datasheet for International Rectifier IRFB7537PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

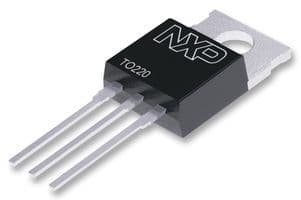

Product Images
