International Rectifier
IRFZ44E
Power Field-Effect Transistor, 48A I(D), 60V, 0.023ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-220AB, TO-220AB, 3 PIN
PackageTO-220-3
Current Rating48A
MountingThrough Hole
Quick Jump:
Technical Specifications
International Rectifier IRFZ44E technical specifications.
General
Package/Case
TO-220-3
Continuous Drain Current (ID)
48A
Current Rating
48A
Drain to Source Breakdown Voltage
60V
Drain to Source Voltage (Vdss)
60V
Input Capacitance
1.36nF
Lead Free
Contains Lead
Max Power Dissipation
110W
Mount
Through Hole
Package Quantity
50
Packaging
Rail/Tube
Rds On Max
23mR
RoHS Compliant
No
Series
HEXFET®
DC Rated Voltage
60V
Compliance
RoHS
Not Compliant
Datasheet
International Rectifier IRFZ44E Datasheet
Download the complete datasheet for International Rectifier IRFZ44E to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

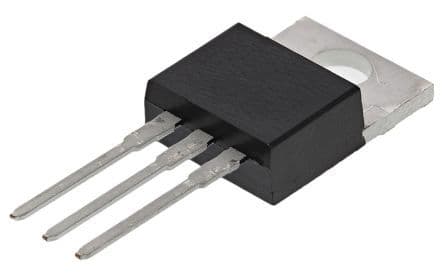

Product Images
