International Rectifier
IRFZ44NS
Power Field-Effect Transistor, 49A I(D), 55V, 0.0175ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-263AB, PLASTIC, D2PAK-2/3
PackageD2PAK
MountingSurface Mount
Power3.8W
Quick Jump:
Technical Specifications
International Rectifier IRFZ44NS technical specifications.
General
Package/Case
D2PAK
Continuous Drain Current (ID)
49A
Drain to Source Voltage (Vdss)
55V
Gate to Source Voltage (Vgs)
20V
Input Capacitance
1.47nF
Max Operating Temperature
175°C
Min Operating Temperature
-55°C
Max Power Dissipation
3.8W
Mount
Surface Mount
Number of Elements
1
Package Quantity
50
Packaging
Rail/Tube
Power Dissipation
3.8W
Rds On Max
17.5mR
RoHS Compliant
No
Compliance
RoHS
Not Compliant
Datasheet
International Rectifier IRFZ44NS Datasheet
Download the complete datasheet for International Rectifier IRFZ44NS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

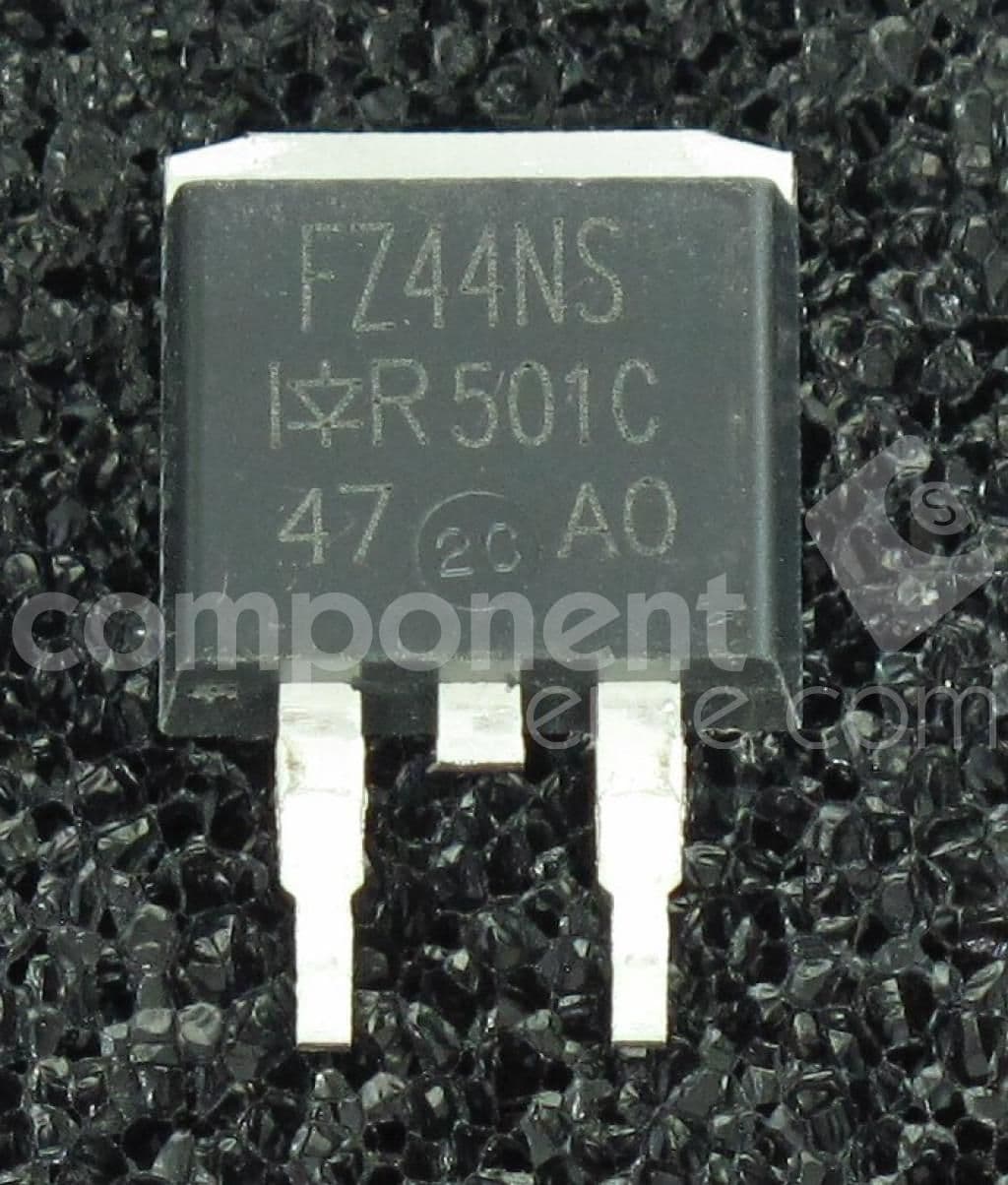

Product Images
