International Rectifier
IRG4RC10KDTRPBF
Insulated Gate Bipolar Transistor, 9A I(C), 600V V(BR)CES, N-Channel, TO-252AA, LEAD FREE, DPAK-3
PackageDPAK
MountingSurface Mount
Power38W
Quick Jump:
Technical Specifications
International Rectifier IRG4RC10KDTRPBF technical specifications.
General
Package/Case
DPAK
Collector Emitter Breakdown Voltage
600V
Collector Emitter Saturation Voltage
2.39V
Collector Emitter Voltage (VCEO)
600V
Collector-emitter Voltage-Max
2.62V
Input Type
STANDARD
Lead Free
Lead Free
Max Breakdown Voltage
600V
Max Collector Current
9A
Max Operating Temperature
150°C
Min Operating Temperature
-55°C
Max Power Dissipation
38W
Mount
Surface Mount
Package Quantity
2000
Packaging
Tape and Reel
Power Dissipation
38W
Radiation Hardening
No
Reach SVHC Compliant
No
Reverse Recovery Time
28ns
RoHS Compliant
Yes
Termination
SMD/SMT
Weight
0.012346oz
Compliance
RoHS
Compliant
Datasheet
International Rectifier IRG4RC10KDTRPBF Datasheet
Download the complete datasheet for International Rectifier IRG4RC10KDTRPBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

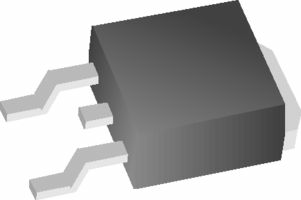

Product Images
