International Rectifier
IRGS4056DPBF
Insulated Gate Bipolar Transistor, 24A I(C), 600V V(BR)CES, N-Channel, TO-263AB, LEAD FREE, D2PAK-3
PackageD2PAK
MountingSurface Mount
Quick Jump:
Technical Specifications
International Rectifier IRGS4056DPBF technical specifications.
General
| Package/Case | D2PAK |
| Collector Emitter Breakdown Voltage | 600V |
| Collector Emitter Saturation Voltage | 1.55V |
| Collector Emitter Voltage (VCEO) | 600V |
| Collector-emitter Voltage-Max | 1.85V |
| Height | 9.65mm |
| Input Type | STANDARD |
| Length | 10.67mm |
| Max Collector Current | 24A |
| Max Operating Temperature | 175°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 140W |
| Mount | Surface Mount |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reverse Recovery Time | 68ns |
| RoHS Compliant | Yes |
| Width | 4.83mm |
Compliance
| RoHS | Compliant |
Datasheet
International Rectifier IRGS4056DPBF Datasheet
Download the complete datasheet for International Rectifier IRGS4056DPBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

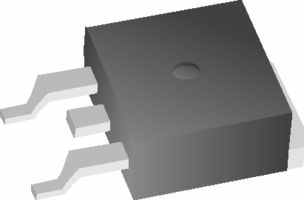

Product Images
