International Rectifier
MBR20100CT
Rectifier Diode, Schottky, 1 Phase, 2 Element, 10A, 100V V(RRM), Silicon, TO-220AB, PLASTIC, TO-220AB, 3 PIN
Capacitance400pF
Current Rating20A
MountingThrough Hole
Quick Jump:
Technical Specifications
International Rectifier MBR20100CT technical specifications.
General
| Capacitance | 400pF |
| Current Rating | 20A |
| Forward Current | 20A |
| Height | 8.24mm |
| Lead Free | Contains Lead |
| Length | 10.5mm |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -65°C |
| Max Repetitive Reverse Voltage (Vrrm) | 100V |
| Max Reverse Current | 100A |
| Mount | Through Hole |
| Packaging | Bulk |
| Peak Non-Repetitive Surge Current | 150A |
| RoHS Compliant | No |
| DC Rated Voltage | 100V |
| Width | 4.7mm |
Compliance
| RoHS | Not Compliant |
Datasheet
International Rectifier MBR20100CT Datasheet
Download the complete datasheet for International Rectifier MBR20100CT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

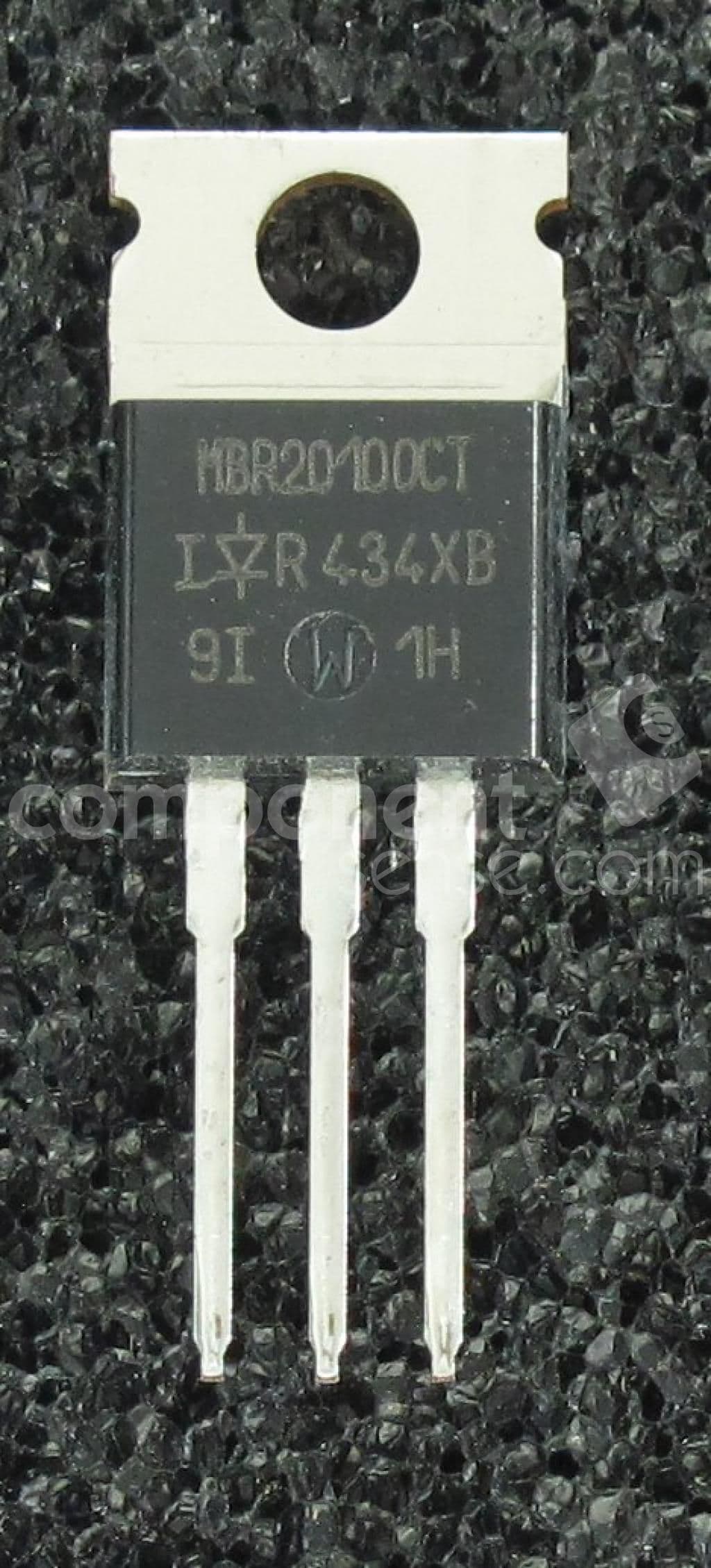

Product Images
