The CS82C55A-5Z is a 24-bit general purpose microcontroller from Intersil. It operates within a temperature range of 0°C to 70°C and is supplied with a voltage between 4.5V and 5.5V. The device is mounted using surface mount technology and has a nominal supply current of 10uA. It is compliant with RoHS regulations but not with Reach SVHC. The microcontroller has 24 I/Os and is packaged in a PLCC format with dimensions of 3.69mm in height, 16.66mm in length, and 16.66mm in width.
PackagePLCC
MountingSurface Mount
Quick Jump:
Technical Specifications
Intersil CS82C55A-5Z technical specifications.
General
| Package/Case | PLCC |
| Height | 3.69mm |
| Length | 16.66mm |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 4.5V |
| Mount | Surface Mount |
| Nominal Supply Current | 10uA |
| Number of I/Os | 24 |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Width | 16.66mm |
Compliance
| RoHS | Compliant |
Datasheet
Intersil CS82C55A-5Z Datasheet
Download the complete datasheet for Intersil CS82C55A-5Z to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

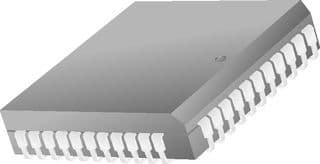

Product Images
