The DG441DJ is a 4-bit SPST multiplexer from Intersil, packaged in a DIP-16 configuration for through-hole mounting. It operates over a temperature range of -40°C to 85°C and has an on-state resistance of 160 ohms. The device is not RoHS compliant and contains lead, with a packaging quantity of 25 units per rail or tube. The DG441DJ has a maximum operating supply current of 15 microamperes and is available in single or dual supply configurations.
PackageDIP
MountingThrough Hole
Quick Jump:
Technical Specifications
Intersil DG441DJ technical specifications.
General
| Package/Case | DIP |
| Lead Free | Contains Lead |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Number of Bits | 4 |
| On-State Resistance | 160R |
| Operating Supply Current | 15uA |
| Package Quantity | 25 |
| Packaging | Rail/Tube |
| RoHS Compliant | No |
| Supply Type | Single, Dual |
| Throw Configuration | SPST |
Compliance
| RoHS | Not Compliant |
Datasheet
Intersil DG441DJ Datasheet
Download the complete datasheet for Intersil DG441DJ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

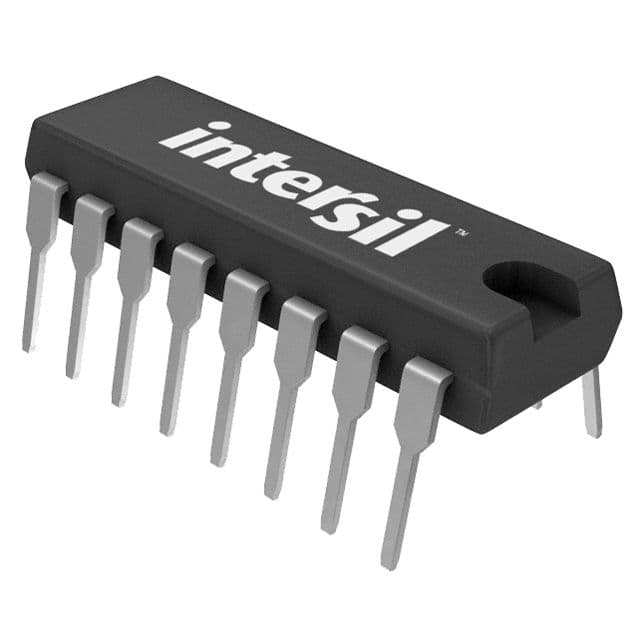

Product Images
