Adjustable synchronous DC/DC buck controller with 600mA output current. Features a wide input voltage range of 2.5V to 5.5V and a maximum output voltage of 5.5V. Achieves up to 95% efficiency with a low quiescent current of 120µA. Packaged in a 10-MSOP surface mount configuration, this lead-free and RoHS compliant component operates from -40°C to 85°C.
PackageMSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Intersil EL7530IYZ-T7 technical specifications.
General
Package/Case
MSOP
Efficiency
95%
Lead Free
Lead Free
Max Input Voltage
5.5V
Min Input Voltage
2.5V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
600mA
Max Output Voltage
5.5V
Min Output Voltage
800mV
Mount
Surface Mount
Number of Outputs
1
Operating Supply Voltage
5.5V
Output Configuration
Positive
Output Current
600mA
Output Type
Adjustable
Output Voltage
5.5V
Package Quantity
1
Packaging
Tape and Reel
Quiescent Current
120uA
Radiation Hardening
No
RoHS Compliant
Yes
Series
EL7530
Synchronous Rectifier
Yes
Width
3mm
Compliance
RoHS
Compliant
Datasheet
Intersil EL7530IYZ-T7 Datasheet
Download the complete datasheet for Intersil EL7530IYZ-T7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

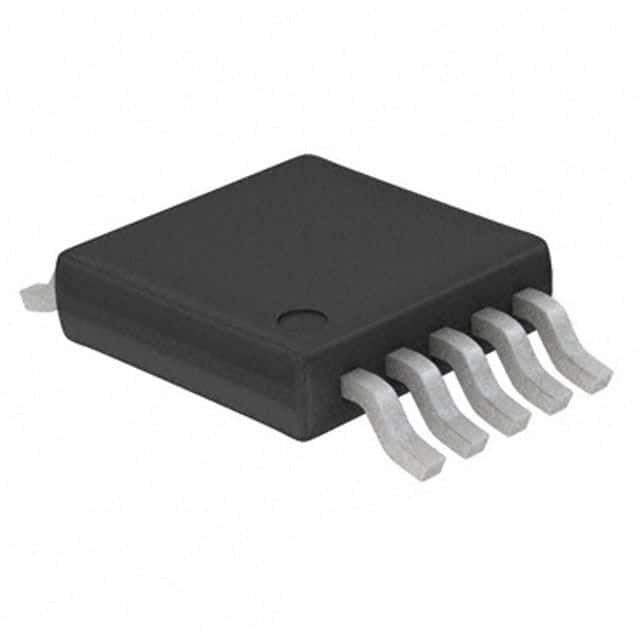

Product Images
