Intersil
ISL23345WFRZ-T7A
4-Channel 256-Position Linear Digital Potentiometer, I2C Interface, QFN Package
The ISL23345WFRZ-T7A is a 4-channel digital potentiometer with 256 positions and a linear taper. It operates over a supply voltage range of 1.7V to 5.5V and is capable of withstanding temperatures up to 125°C. The device is packaged in a QFN package and is available on tape and reel in quantities of 250. It is RoHS compliant and features an I2C interface.
PackageQFN
Current18uA
Resistance10kR
Quick Jump:
Technical Specifications
Intersil ISL23345WFRZ-T7A technical specifications.
General
| Package/Case | QFN |
| Interface | I2C |
| Max Operating Temperature | 125°C |
| Memory Type | Volatile, |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 1.7V |
| Number of Circuits | 4 |
| Number of Positions | 256 |
| Number of Taps | 256 |
| Operating Supply Voltage | 3.3V |
| Package Quantity | 250 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Resistance | 10kR |
| RoHS Compliant | Yes |
| Series | XDCP™ |
| Supply Current | 18uA |
| Taper | Linear |
| Tolerance | 20% |
Compliance
| RoHS | Compliant |
Datasheet
Intersil ISL23345WFRZ-T7A Datasheet
Download the complete datasheet for Intersil ISL23345WFRZ-T7A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

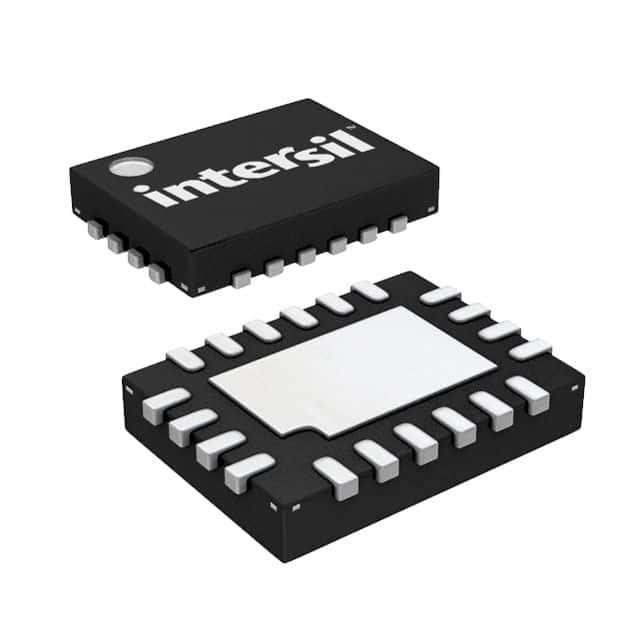

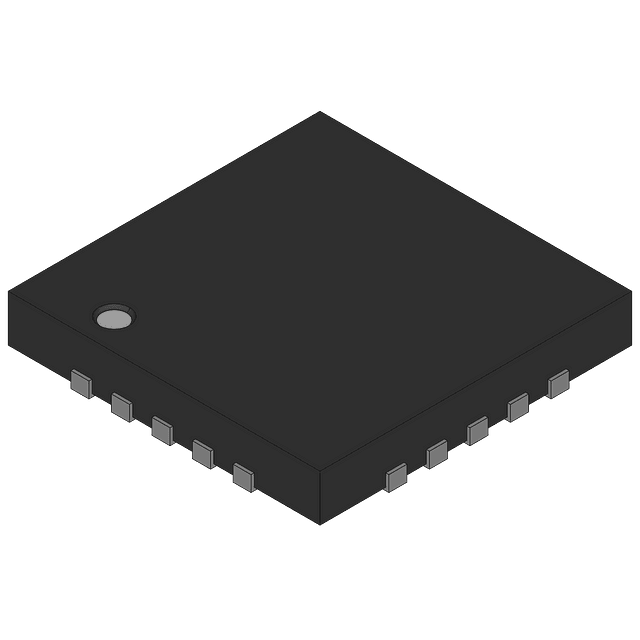

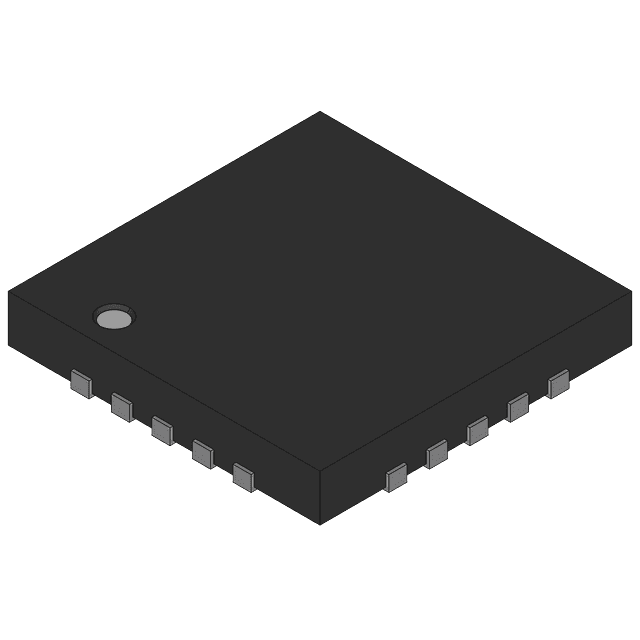

Product Images
