The ISL23448WFRZ-T7A is a 4-channel digital potentiometer from Intersil. It operates over a temperature range of -40°C to 125°C and is supplied from a voltage of 1.7V to 5.5V. The device is packaged in a QFN-32 package and is mounted using surface mount techniques. It is compliant with RoHS regulations and is suitable for use in lead-free applications.
PackageQFN
Current110uA
Resistance10kR
MountingSurface Mount
Quick Jump:
Technical Specifications
Intersil ISL23448WFRZ-T7A technical specifications.
General
| Package/Case | QFN |
| Interface | SPI, 4-WIRE |
| Lead Free | Lead Free |
| Max Operating Temperature | 125°C |
| Memory Type | Volatile, |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 1.7V |
| Mount | Surface Mount |
| Number of Circuits | 4 |
| Number of Positions | 128 |
| Number of Taps | 128 |
| Operating Supply Voltage | 3.3V |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Resistance | 10kR |
| RoHS Compliant | Yes |
| Series | XDCP™ |
| Supply Current | 110uA |
Compliance
| RoHS | Compliant |
Datasheet
Intersil ISL23448WFRZ-T7A Datasheet
Download the complete datasheet for Intersil ISL23448WFRZ-T7A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

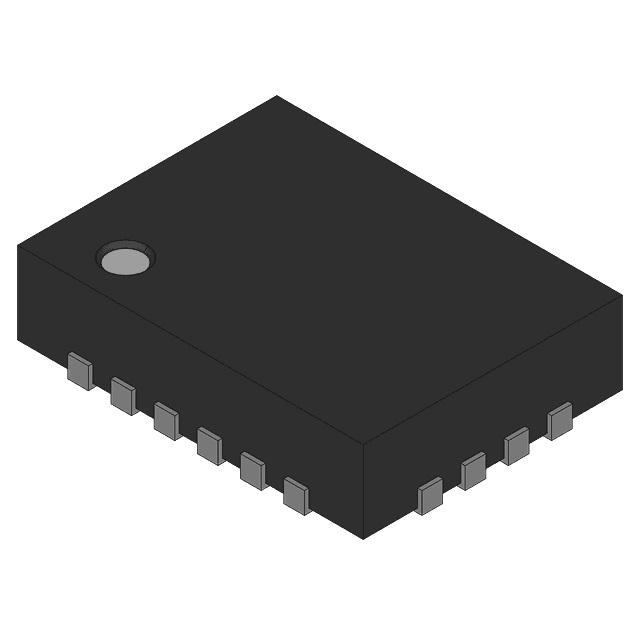

Product Images
