Triple 2-channel video multiplexer featuring 1GHz -3dB bandwidth and 1200V/µs slew rate. This surface mount IC operates at 5V with a maximum supply current of 43mA and offers 130mA output current per channel. Propagation delay is 600ps, and it operates across a temperature range of -40°C to 85°C. The component is lead-free, RoHS compliant, and housed in a 4mm x 5mm x 0.88mm QFN package.
PackageQFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Intersil ISL59424IRZ-T7 technical specifications.
General
-3db Bandwidth
1GHz
Bandwidth
1GHz
Package/Case
QFN
Height
0.88mm
Lead Free
Lead Free
Length
4mm
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Current
43mA
Mount
Surface Mount
Number of Channels
3
Number of Circuits
3
Operating Supply Current
39mA
Operating Supply Voltage
5V
Output Current per Channel
130mA
Package Quantity
1000
Packaging
Tape and Reel
Propagation Delay
600ps
Radiation Hardening
No
RoHS Compliant
Yes
Series
ISL59424
Slew Rate
1200V/µs
Throw Configuration
SPDT
Weight
0.002388oz
Width
5mm
Compliance
RoHS
Compliant
Datasheet
Intersil ISL59424IRZ-T7 Datasheet
Download the complete datasheet for Intersil ISL59424IRZ-T7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

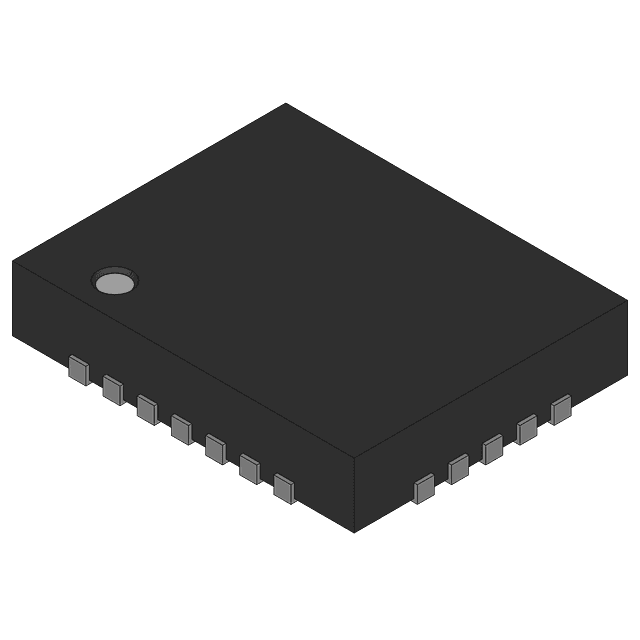

Product Images
