Intersil
ISL6420BIRZ-TK
Advanced Single Synchronous Buck Pulse-Width Modulation (PWM) Controller; QFN20, QSOP20; Temp Range: -40° to 85°C
Frequency1.4MHz
PackageQFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Intersil ISL6420BIRZ-TK technical specifications.
General
Package/Case
QFN
Clock Sync
No
Duty Cycle
100%
Height
0.95mm
Lead Free
Lead Free
Length
4mm
Max Duty Cycle
96%
Max Frequency
1.4MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Mount
Surface Mount
Number of Output Phases
1
Number of Outputs
1
Operating Supply Voltage
12V
Output Configuration
Positive
Output Current
700mA
Output Voltage
27.5V
Package Quantity
1000
Packaging
Tape and Reel
RoHS Compliant
Yes
Synchronous Rectifier
Yes
Width
4mm
Compliance
RoHS
Compliant
Datasheet
Intersil ISL6420BIRZ-TK Datasheet
Download the complete datasheet for Intersil ISL6420BIRZ-TK to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

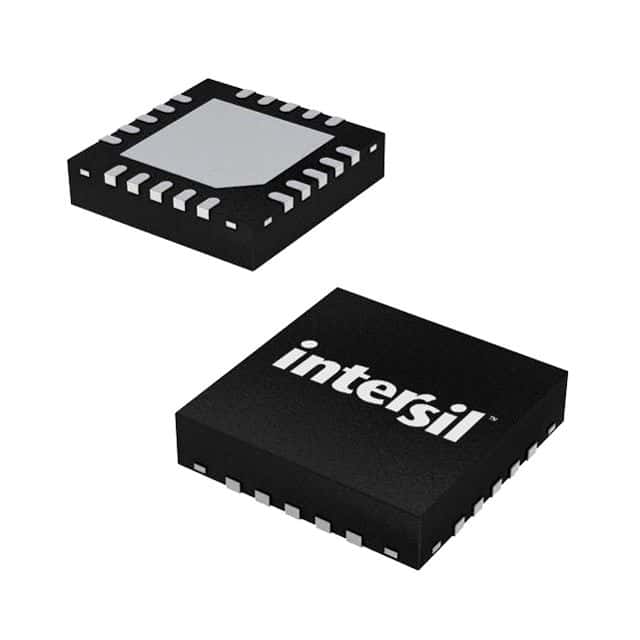

Product Images
