Technical Specifications
Issi IS42S32200L-7BL technical specifications.
General
| Access Time | 7ns |
| Address Bus Width | 13b |
| Package/Case | TFBGA |
| Data Bus Width | 32b |
| Density | 64Mb |
| Interface | Parallel |
| Max Frequency | 143MHz |
| Max Operating Temperature | 70°C |
| Memory Size | 64Mb |
| Memory Type | RAM, , SDRAM |
| Min Operating Temperature | 0°C |
| Max Supply Current | 90mA |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Operating Supply Voltage | 3.3V |
| Organization | 2MX32 |
| Packaging | Tray |
| RoHS Compliant | Yes |
| Supply Current | 90mA |
Compliance
| RoHS | Compliant |
Datasheet
Issi IS42S32200L-7BL Datasheet
Download the complete datasheet for Issi IS42S32200L-7BL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

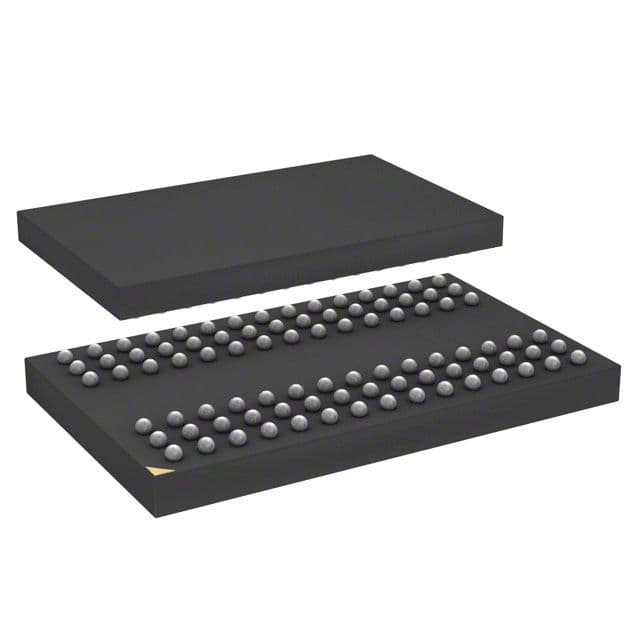

Product Images
