This 512Mb SRAM IC features a 32MX16 organization and operates at a maximum frequency of 200MHz. The device is available in a FBGA package and is suitable for surface mount applications. The SRAM has a maximum operating temperature of 85°C and a minimum operating temperature of -40°C. It is compliant with RoHS regulations and has a supply current of 430mA.
Frequency200MHz
PackageFBGA
Current430mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Issi IS43R16320D-5BLI technical specifications.
General
| Access Time | 700ps |
| Access Time-Max | 700ps |
| Address Bus Width | 15b |
| Package/Case | FBGA |
| Data Bus Width | 16b |
| Density | 512Mb |
| Frequency | 200MHz |
| Max Frequency | 200MHz |
| Max Operating Temperature | 85°C |
| Max Supply Voltage | 2.6V |
| Memory Size | 512Mb |
| Memory Type | Volatile, |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 2.4V |
| Mount | Surface Mount |
| Operating Supply Voltage | 2.5V |
| Organization | 32MX16 |
| Package Quantity | 190 |
| Packaging | Tray |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Supply Current | 430mA |
Compliance
| RoHS | Compliant |
Datasheet
Issi IS43R16320D-5BLI Datasheet
Download the complete datasheet for Issi IS43R16320D-5BLI to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

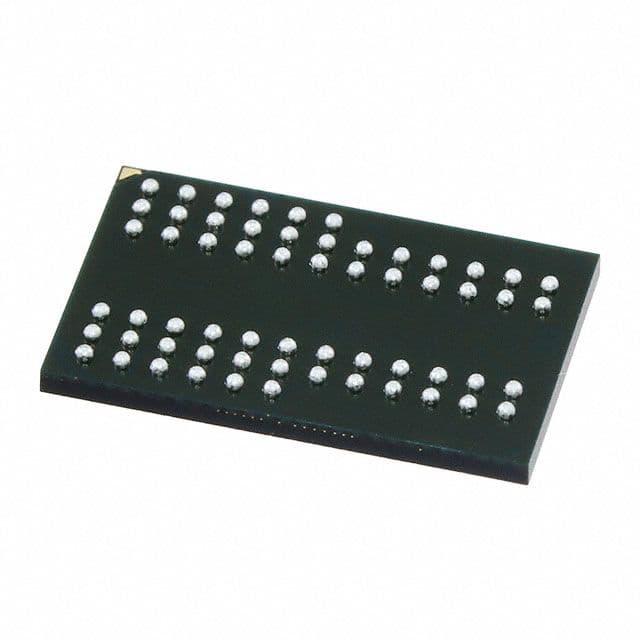

Product Images
