1Mb Asynchronous SRAM with 12ns access time, featuring an 8-bit word size and 17-bit address bus. This integrated circuit operates at 5V with a maximum frequency of 83MHz and is housed in a lead-free SOJ package. It offers a wide operating temperature range from -40°C to 85°C and is RoHS compliant.
Frequency1MHz
PackageSOJ
Current40mA
Quick Jump:
Technical Specifications
Issi IS61C1024AL-12JLI technical specifications.
General
Access Time
12ns
Access Time-Max
12ns
Address Bus Width
17b
Package/Case
SOJ
Density
1Mb
Frequency
1MHz
Height
2.67mm
Interface
Parallel
Lead Free
Lead Free
Length
21.08mm
Max Frequency
83MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Memory Size
1Mb
Memory Type
RAM, , SRAM - Asynchronous
Min Supply Voltage
4.5V
Number of Ports
1
Number of Words
128000
Operating Supply Voltage
5V
Package Quantity
22
Packaging
Rail/Tube
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
40mA
Sync/Async
Asynchronous
Termination
SMD/SMT
Width
7.75mm
Word Size
8b
Compliance
RoHS
Compliant
Datasheet
Issi IS61C1024AL-12JLI Datasheet
Download the complete datasheet for Issi IS61C1024AL-12JLI to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

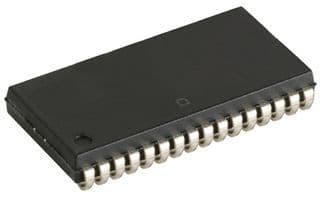

Product Images
