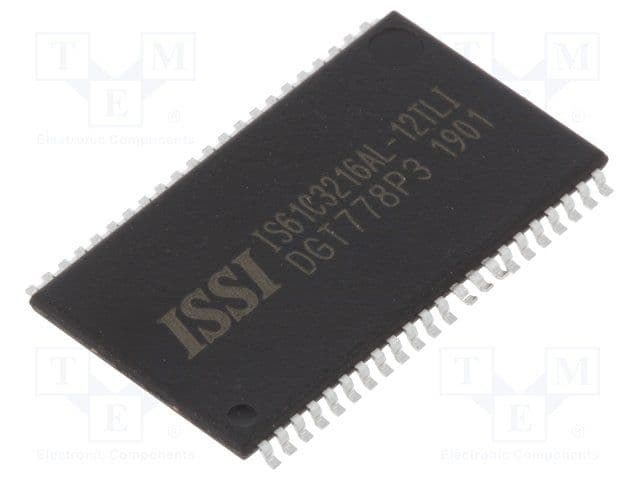

Asynchronous SRAM chip, 512Kb density, 32K x 16 configuration, 12ns access time. Features a 5V operating supply voltage, 4.5V to 5.5V range, and CMOS technology. Packaged in a 44-pin TSOP-II (SOJ) with gull wing terminals, this surface-mount component is lead-free and RoHS compliant, operating from -40°C to 85°C.
PackageSOJ
Current45mA
Quick Jump:
Technical Specifications
Issi IS61C3216AL-12TLI technical specifications.
General
Access Time
12ns
Access Time-Max
12ns
Address Bus Width
15b
Package/Case
SOJ
Density
512Kb
Interface
Parallel
JESD-30 Code
R-PDSO-G44
Lead Free
Lead Free
Max Operating Temperature
85°C
Max Supply Voltage
5.5V
Memory Size
512Kb
Memory Type
Volatile, , SRAM
Memory Width
16
Min Operating Temperature
-40°C
Min Supply Voltage
4.5V
Moisture Sensitivity Level
3
Number of Functions
1
Number of Ports
1
Number of Words
32000
Operating Supply Voltage
5V
Package Body Material
Plastic
Package Quantity
135
Package Shape
Rectangular
Packaging
Rail/Tube
Parallel/Serial
PARALLEL
Peak Reflow Temperature (Cel)
260°C
Radiation Hardening
No
RoHS Compliant
Yes
Supply Current
45mA
Surface Mount
Yes
Sync/Async
Asynchronous
Technology
CMOS
Temperature Grade
INDUSTRIAL
Terminal Finish
Tin
Terminal Form
Gull Wing
Terminal Position
DUAL
Time @ Peak Reflow Temperature-Max (s)
40s
Width
10.16mm
Word Size
16b
Compliance
RoHS
Compliant
