The IS63LV1024L-12J is a 1Mb SRAM IC with a 17-bit address bus and an operating supply voltage of 3.3V. It has a maximum operating temperature of 70°C and a minimum operating temperature of 0°C. The device is packaged in a SOJ package and is mounted using surface mount technology. It has a maximum supply voltage of 3.6V and a minimum supply voltage of 3V.
PackageSOJ
Current130mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Issi IS63LV1024L-12J technical specifications.
General
| Access Time | 12ns |
| Address Bus Width | 17b |
| Package/Case | SOJ |
| Density | 1Mb |
| Interface | Parallel |
| Max Operating Temperature | 70°C |
| Memory Size | 1Mb |
| Memory Type | Volatile, , SRAM |
| Min Operating Temperature | 0°C |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Number of Ports | 1 |
| Number of Words | 128000 |
| Operating Supply Voltage | 3.3V |
| Package Quantity | 22 |
| Packaging | Rail/Tube |
| RoHS Compliant | No |
| Supply Current | 130mA |
| Sync/Async | Asynchronous |
| Word Size | 8b |
Compliance
| RoHS | Not Compliant |
Datasheet
Issi IS63LV1024L-12J Datasheet
Download the complete datasheet for Issi IS63LV1024L-12J to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

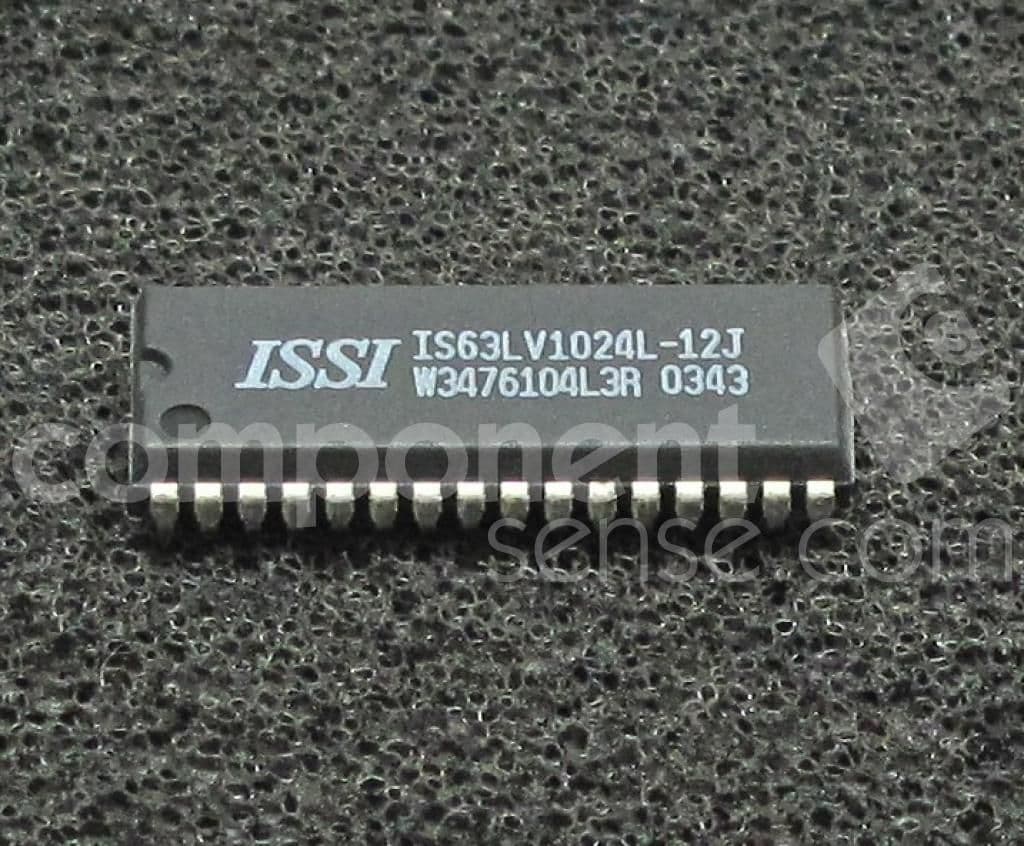

Product Images
