SPDT Standard Slide Switch with On-On function, featuring PC pin termination and bracket/through-hole mounting. Rated for 20VAC/20VDC and 0.4VA, this switch offers a 2.16mm travel and an electrical life of 100,000 cycles. It operates within a temperature range of -30°C to 65°C, with a black nylon actuator and gold/nickel plated copper alloy contacts.
MountingThrough Hole, Brackets
Quick Jump:
Technical Specifications
ITT 1101M2S3V3KE2 technical specifications.
General
Actuator Color
Black
Actuator Length
4.72mm
Actuator Material
Nylon, Polyamide
Actuator Type
Standard
Contact Material
Copper, Copper Alloy
Contact Plating
Gold, Nickel
Depth
7.92mm
Electrical Life
100000Cycles
Length
16.11mm
Max Operating Temperature
65°C
Min Operating Temperature
-30°C
Max Voltage Rating (AC)
20V
Max Voltage Rating (DC)
20V
Mount
Through Hole, Brackets
Orientation
Straight
Package Quantity
1
Packaging
Bulk
RoHS Compliant
No
Series
1000
Switch Function
On-On
Switch Travel
2.16mm
Termination
PC Pins
Throw Configuration
SPDT
Voltage Rating (AC)
20V
DC Rated Voltage
20V
Compliance
RoHS
Not Compliant
Datasheet
ITT 1101M2S3V3KE2 Datasheet
Download the complete datasheet for ITT 1101M2S3V3KE2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

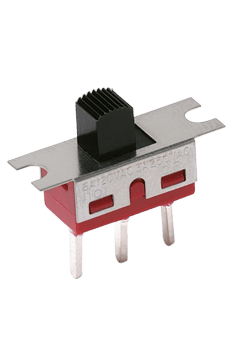

Product Images
