Technical Specifications
ITT 1101M2S4AKE2 technical specifications.
General
Actuator Color
Black
Actuator Material
Nylon
Actuator Type
Standard
Contact Current Rating
6A
Contact Material
Copper Alloy
Contact Plating
Nickel, Gold
Depth
17.67mm
Electrical Life
100000Cycles
Lead Free
Lead Free
Length
13.57mm
Max Operating Temperature
65°C
Min Operating Temperature
-30°C
Max Voltage Rating (AC)
20V
Max Voltage Rating (DC)
20V
Mount
Through Hole, Brackets
Orientation
Right Angle
Package Quantity
1
Series
1000
Switch Function
On-On
Termination
PC Pins
Throw Configuration
SPDT
Compliance
RoHS
Not Compliant
Datasheet
ITT 1101M2S4AKE2 Datasheet
Download the complete datasheet for ITT 1101M2S4AKE2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

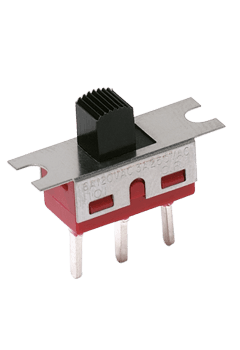

Product Images
