SPDT slide switch featuring PC pin termination and bracket mount/through-hole mounting. Offers a 20VAC/20VDC voltage rating with 0.4VA power handling, and a 2.16mm switch travel. Constructed with copper alloy contacts plated in gold and nickel, and a red nylon actuator. Rated for 100,000 electrical cycles and operates within a -30°C to 65°C temperature range.
MountingThrough Hole, Vertical, Brackets
Quick Jump:
Technical Specifications
ITT 1101M2S4AV2BE3 technical specifications.
General
Actuator Color
Red
Actuator Length
6.88mm
Actuator Material
Nylon, Polyamide
Actuator Type
Standard
Contact Material
Copper, Copper Alloy
Contact Plating
Gold, Nickel
Depth
25.58mm
Electrical Life
100000Cycles
Lead Free
Lead Free
Length
6.6mm
Max Operating Temperature
65°C
Min Operating Temperature
-30°C
Max Voltage Rating (AC)
20V
Max Voltage Rating (DC)
20V
Mount
Through Hole, Vertical, Brackets
Package Quantity
1
Packaging
Bulk
RoHS Compliant
Yes
Series
1000
Switch Function
On-On
Switch Travel
2.16mm
Termination
PC Pins
Throw Configuration
SPDT
Voltage Rating (AC)
20V
DC Rated Voltage
20V
Compliance
RoHS
Compliant
Datasheet
ITT 1101M2S4AV2BE3 Datasheet
Download the complete datasheet for ITT 1101M2S4AV2BE3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

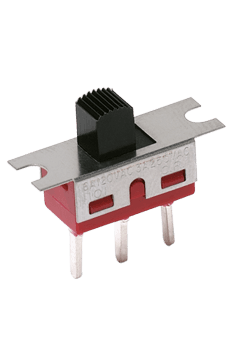

Product Images
