SPDT slide switch with standard, extended side actuator. Features PC pin termination for bracket mount or through-hole installation, offering a right-angle orientation. Rated for 20VAC/20VDC with a 0.4VA power capacity and 100,000 electrical cycles. Constructed with copper alloy contacts plated in gold and nickel, and a black nylon actuator. Operates within a temperature range of -30°C to 65°C.
MountingThrough Hole, Brackets
Quick Jump:
Technical Specifications
ITT 1101M2S6ABE2 technical specifications.
General
Actuator Color
Black
Actuator Length
11.96mm
Actuator Material
Nylon, Polyamide
Actuator Type
Standard
Contact Material
Copper, Copper Alloy
Contact Plating
Gold, Nickel
Depth
22.75mm
Electrical Life
100000Cycles
Length
13.57mm
Max Operating Temperature
65°C
Min Operating Temperature
-30°C
Max Voltage Rating (AC)
20V
Max Voltage Rating (DC)
20V
Mount
Through Hole, Brackets
Orientation
Right Angle
Package Quantity
1
Packaging
Bulk
RoHS Compliant
Yes
Series
1000
Switch Function
On-On
Switch Travel
2.16mm
Termination
PC Pins
Throw Configuration
SPDT
Voltage Rating (AC)
20V
DC Rated Voltage
20V
Compliance
RoHS
Compliant
Datasheet
ITT 1101M2S6ABE2 Datasheet
Download the complete datasheet for ITT 1101M2S6ABE2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

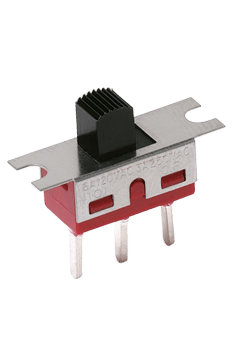

Product Images
