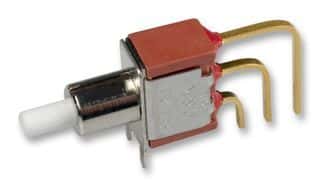

SPDT illuminated pushbutton switch with a 1A current rating and 120V AC / 28V DC voltage rating. Features gold/nickel contact plating, nylon/glass/polyester actuator material, and a 5.08mm lead pitch. Offers 60,000 electrical cycles, UL94 V-0 flammability, and is RoHS compliant. Mounts via snap-in or through-hole with PC pin termination.
Current Rating1A
MountingSnap in, Through Hole, Vertical
Quick Jump:
Technical Specifications
ITT 8121SD9AV2GE technical specifications.
General
Actuator Length
5.79mm
Actuator Material
Nylon, Glass, Polyester
Approvals
UL, CSA
Contact Current Rating
1A
Contact Material
Gold, Silver
Contact Plating
Gold, Nickel
Current Rating
1A
Depth
33.6mm
Electrical Life
60000Cycles
Flammability Rating
UL94 V-0
Lead Free
Lead Free
Lead Pitch
5.08mm
Length
6.86mm
Max Current Rating
1A
Max Operating Temperature
75°C
Min Operating Temperature
-30°C
Max Voltage Rating (AC)
120V
Max Voltage Rating (DC)
28V
Mount
Snap in, Through Hole, Vertical
Number of Poles
1
Number of Positions
2
Package Quantity
1
Packaging
Bulk
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
8020
Switch Function
On-Mom
Termination
PC Pins
Throw Configuration
SPDT
Voltage Rating (AC)
120V
DC Rated Voltage
28V
Width
6.86mm
Compliance
RoHS
Compliant
Datasheet
ITT 8121SD9AV2GE Datasheet
Download the complete datasheet for ITT 8121SD9AV2GE to view detailed technical specifications.
