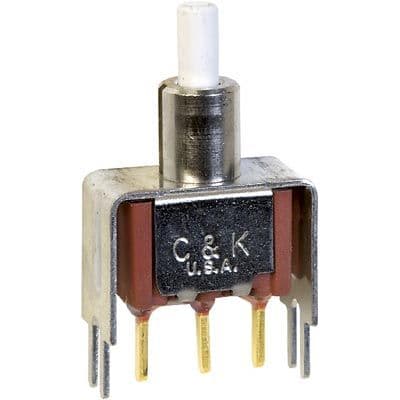

SPDT momentary pushbutton switch with solder terminal and 3 PCB hole count. Features a 1A current rating at 28VDC, 120VAC max voltage rating, and gold/silver contacts with gold/nickel plating. Offers a 60,000 cycle electrical life and operates within a -30°C to 75°C temperature range. Mounts via snap-in, through-hole, or brackets, with a straight orientation and UL94 V-0 flammability rating. RoHS compliant and lead-free.
Current Rating1A
MountingSnap in, Through Hole, Brackets
Quick Jump:
Technical Specifications
ITT 8121SD9V3GE technical specifications.
General
Actuator Length
5.69mm
Actuator Material
Nylon, Glass, Polyester
Approvals
UL, CSA
Contact Current Rating
1A
Contact Material
Gold, Silver
Contact Plating
Gold, Nickel
Current Rating
1A
Depth
8.13mm
Electrical Life
60000Cycles
Flammability Rating
UL94 V-0
Lead Free
Lead Free
Length
16.26mm
Max Current Rating
1A
Max Operating Temperature
75°C
Min Operating Temperature
-30°C
Max Voltage Rating (AC)
120V
Max Voltage Rating (DC)
28V
Mount
Snap in, Through Hole, Brackets
Number of Poles
1
Number of Positions
2
Orientation
Straight
Package Quantity
1
Packaging
Bulk
Radiation Hardening
No
RoHS Compliant
Yes
Series
8020
Switch Function
On-Mom
Termination
PC Pins
Throw Configuration
SPDT
Voltage Rating (AC)
120V
DC Rated Voltage
28V
Width
12.7mm
Compliance
RoHS
Compliant
Datasheet
ITT 8121SD9V3GE Datasheet
Download the complete datasheet for ITT 8121SD9V3GE to view detailed technical specifications.
