SP4T rotary switch featuring a 4-position, non-shorting contact style with silver contacts and silver plating. This electromechanical component offers a 2.5A max current rating at 125VAC/125VDC and an electrical life of 15,000 cycles. It includes a 12.7mm nylon and glass actuator with a 30° index angle and fixed stops, designed for panel mounting with solder lug termination. Operating temperature range is -30°C to 85°C, and the unit is RoHS compliant.
MountingPanel
Quick Jump:
Technical Specifications
ITT A10405RNZQK technical specifications.
General
Actuator Length
12.7mm
Actuator Material
Nylon, Glass
Contact Material
Silver
Contact Plating
Silver
Contact Style
Non-Shorting
Depth
26.19mm
Electrical Life
15000Cycles
Index Angle
30°
Index Stops
Fixed
Length
26.19mm
Max Current Rating
2.5A
Max Operating Temperature
85°C
Min Operating Temperature
-30°C
Max Voltage Rating (AC)
125V
Max Voltage Rating (DC)
125V
Mount
Panel
Number of Decks
1
Number of Poles per Deck
1
Number of Positions
4
Orientation
Straight
Package Quantity
1
RoHS Compliant
Yes
Series
A
Termination
Solder
Throw Configuration
SP4T
Voltage Rating (AC)
125V
DC Rated Voltage
125V
Compliance
RoHS
Compliant
Datasheet
ITT A10405RNZQK Datasheet
Download the complete datasheet for ITT A10405RNZQK to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

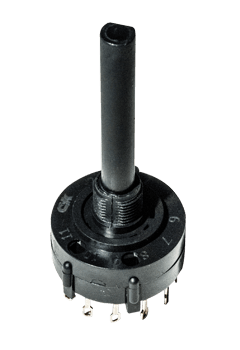

Product Images
