12-position rotary switch featuring a 30° index angle and fixed index stops. This single-deck, single-pole switch offers a 2.5A maximum current rating and a 125V AC/DC voltage rating. It utilizes silver contacts with silver plating and a non-shorting contact style. Designed for panel mounting with solder termination, this switch boasts an electrical life of 300,000 cycles and operates within a temperature range of -30°C to 85°C.
Voltage Rating125V
Current Rating5A
MountingPanel
Quick Jump:
Technical Specifications
ITT A11203RNZQ technical specifications.
General
Actuator Length
9.53mm
Actuator Material
Nylon, Glass
Contact Material
Silver
Contact Plating
Silver
Contact Style
Non-Shorting
Current Rating
5A
Depth
26.19mm
Electrical Life
300000Cycles
Index Angle
30°
Index Stops
Fixed
Lead Free
Lead Free
Length
26.19mm
Max Current Rating
2.5A
Max Operating Temperature
85°C
Min Operating Temperature
-30°C
Max Voltage Rating (AC)
125V
Max Voltage Rating (DC)
125V
Mount
Panel
Number of Decks
1
Number of Poles per Deck
1
Number of Positions
12
Orientation
Straight
Package Quantity
1
RoHS Compliant
Yes
Series
A
Termination
Solder
Throw Configuration
SP, SP12T, SPST
Voltage Rating
125V
Voltage Rating (AC)
125V
DC Rated Voltage
125V
Compliance
RoHS
Compliant
Datasheet
ITT A11203RNZQ Datasheet
Download the complete datasheet for ITT A11203RNZQ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

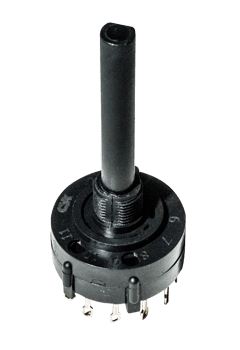

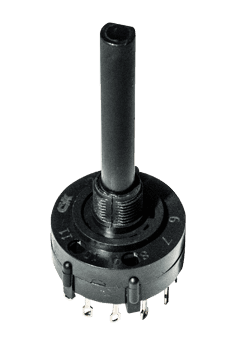

Product Images
