SP12T rotary switch featuring a 12-position, single-pole configuration with a 30° index angle and fixed stops. This modular base switch offers a 2.5A current rating at 125VAC/125VDC and a silver contact material with silver plating. Designed for through-hole, panel mounting, it boasts an electrical life of 300,000 cycles and operates within a -30°C to 85°C temperature range. The switch includes a 9.53mm nylon and glass flatted shaft actuator.
MountingThrough Hole, Panel
Quick Jump:
Technical Specifications
ITT A11203RSMCQK technical specifications.
General
Actuator Length
9.53mm
Actuator Material
Nylon, Glass
Contact Material
Silver
Contact Plating
Silver
Contact Style
Shorting
Depth
26.19mm
Electrical Life
300000Cycles
Index Angle
30°
Index Stops
Fixed
Length
26.19mm
Max Current Rating
2.5A
Max Operating Temperature
85°C
Min Operating Temperature
-30°C
Max Voltage Rating (AC)
125V
Max Voltage Rating (DC)
125V
Mount
Through Hole, Panel
Number of Decks
1
Number of Poles per Deck
1
Number of Positions
12
Orientation
Straight
Package Quantity
1
RoHS Compliant
Yes
Series
A
Termination
Modular Base
Throw Configuration
SP12T
Voltage Rating (AC)
125V
DC Rated Voltage
125V
Compliance
RoHS
Compliant
Datasheet
ITT A11203RSMCQK Datasheet
Download the complete datasheet for ITT A11203RSMCQK to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

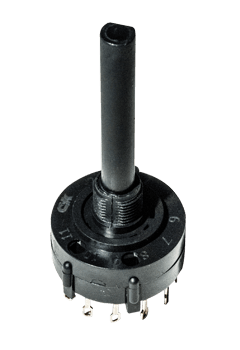

Product Images
