SP8T rotary switch featuring 8 positions and 1 pole per deck. Rated for 2.5A at 125VAC/125VDC with silver contacts and silver plating. Offers a 45° index angle with fixed stops and a non-shorting contact style. Designed for through-hole and panel mounting with PC pin terminations. Operates within a temperature range of -30°C to 85°C and boasts an electrical life of 300,000 cycles.
MountingThrough Hole, Panel
Quick Jump:
Technical Specifications
ITT A12503RNCQ technical specifications.
General
Actuator Length
9.53mm
Actuator Material
Nylon, Glass
Contact Material
Silver
Contact Plating
Silver
Contact Style
Non-Shorting
Depth
26.19mm
Electrical Life
300000Cycles
Index Angle
45°
Index Stops
Fixed
Length
26.19mm
Max Current Rating
2.5A
Max Operating Temperature
85°C
Min Operating Temperature
-30°C
Max Voltage Rating (AC)
125V
Max Voltage Rating (DC)
125V
Mount
Through Hole, Panel
Number of Decks
1
Number of Poles per Deck
1
Number of Positions
8
Orientation
Straight
Package Quantity
1
RoHS Compliant
Yes
Series
A
Termination
PC Pins
Throw Configuration
SP8T
Voltage Rating (AC)
125V
DC Rated Voltage
125V
Compliance
RoHS
Compliant
Datasheet
ITT A12503RNCQ Datasheet
Download the complete datasheet for ITT A12503RNCQ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

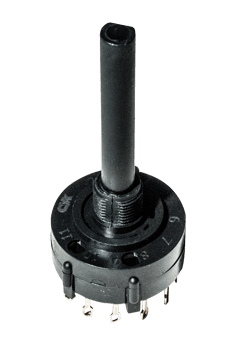

Product Images
