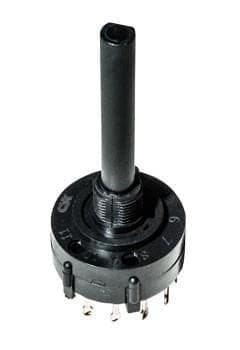

8-position, single-pole rotary switch with SP8T configuration, featuring non-shorting silver contacts rated for 2.5A at 125VAC/125VDC. This through-hole mount component offers a 45° index angle and fixed index stops, with a nylon and glass actuator measuring 9.53mm. Designed for a wide operating temperature range of -30°C to 85°C, it boasts an electrical life of 300,000 cycles and is RoHS compliant.
MountingThrough Hole, Panel
Quick Jump:
Technical Specifications
ITT A12503RNCQE technical specifications.
General
Actuator Length
9.53mm
Actuator Material
Nylon, Glass
Contact Material
Silver
Contact Plating
Silver
Contact Style
Non-Shorting
Depth
26.19mm
Electrical Life
300000Cycles
Index Angle
45°
Index Stops
Fixed
Lead Free
Lead Free
Length
26.19mm
Max Current Rating
2.5A
Max Operating Temperature
85°C
Min Operating Temperature
-30°C
Max Voltage Rating (AC)
125V
Max Voltage Rating (DC)
125V
Mount
Through Hole, Panel
Number of Decks
1
Number of Poles per Deck
1
Number of Positions
8
Orientation
Straight
Package Quantity
1
Packaging
Bulk
Radiation Hardening
No
RoHS Compliant
Yes
Series
A
Termination
PC Pins
Throw Configuration
SP8T, SP
Voltage Rating (AC)
125V
DC Rated Voltage
125V
Compliance
RoHS
Compliant
Datasheet
ITT A12503RNCQE Datasheet
Download the complete datasheet for ITT A12503RNCQE to view detailed technical specifications.
